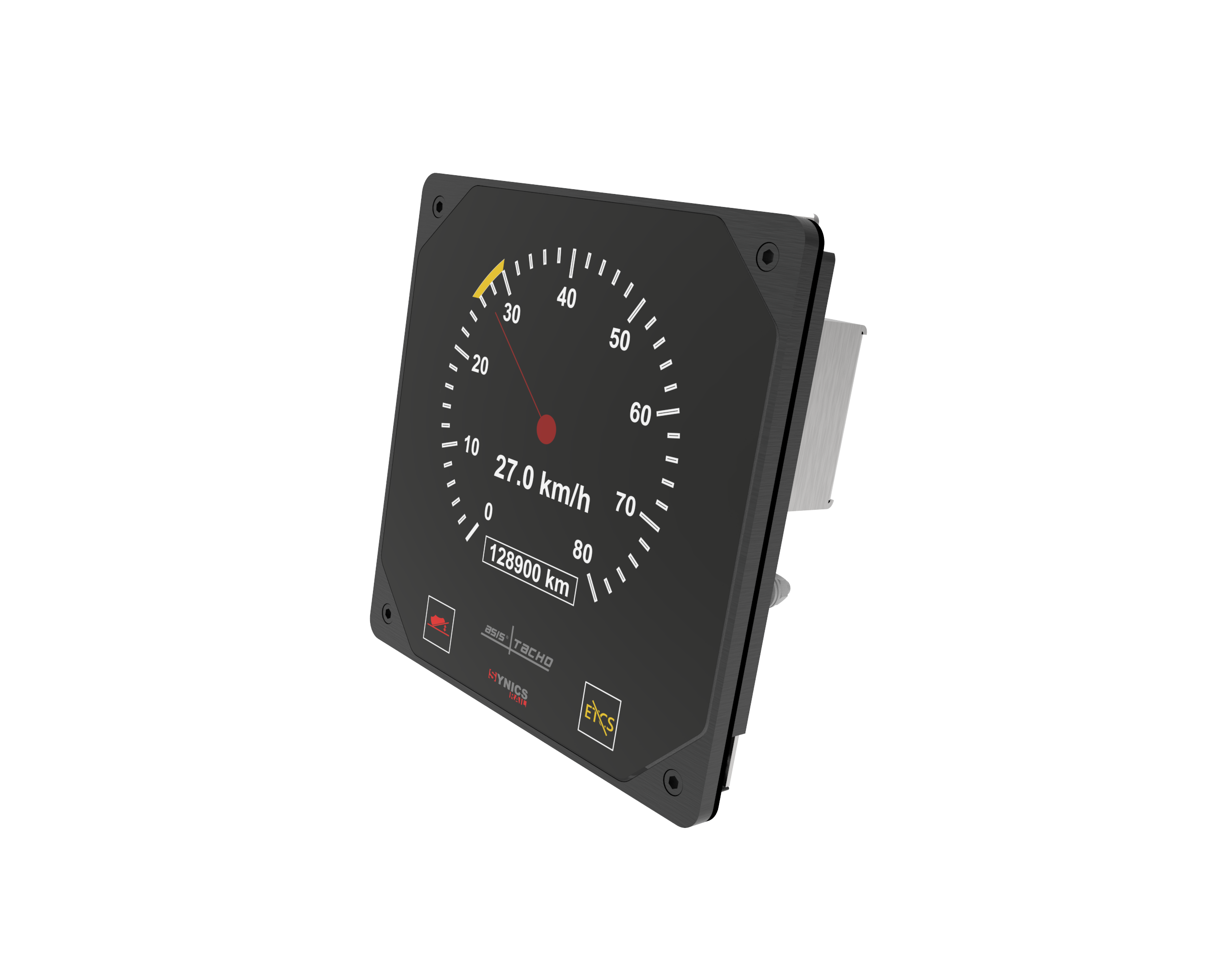

Actual and target speed
A project-specific 4-inch display combines analogue and digital speed indication.
Digital and analogue speed display
Speed clearly.
Displayed precisely.
A compact, configurable speed display for modern and retrofit railway vehicles - with actual and target speed, flexible interfaces and customer-specific graphics.
144 × 144 mm · 4-inch display720 × 720 px4-inch display
38 mmLow installation depth
IP65Front protection
24-110 VDCWide-range supply
01 Product overview
One display.
Your vehicle design.
asis®Tacho combines actual speed, target speed and two configurable indicator symbols in a compact railway display.
During operation, asis®Tacho receives actual and target speed via analogue inputs or vehicle networks, converts the values into a clear analogue pointer and digital speed display, and controls two configurable status or warning symbols. Brightness, scale, pointer, colours and additional content are adapted to the vehicle project. Configuration is performed through USB or the web interface, while the shallow housing and latch mechanism simplify retrofit installation.
02 Core capabilities
Multiple interfaces
Use 0-10 V, 4-20 mA, CANopen, sdxCAN, TCP or TRDP.
Configurable symbols
Two indicator symbols support two colours and replaceable insert strips.
Fast commissioning
Configure through USB, the asis®Tacho Configurator or web interface.
03 Display concept
Project-specific on screen and glass.
Configure the central speed display and select individual symbols without changing the base device.

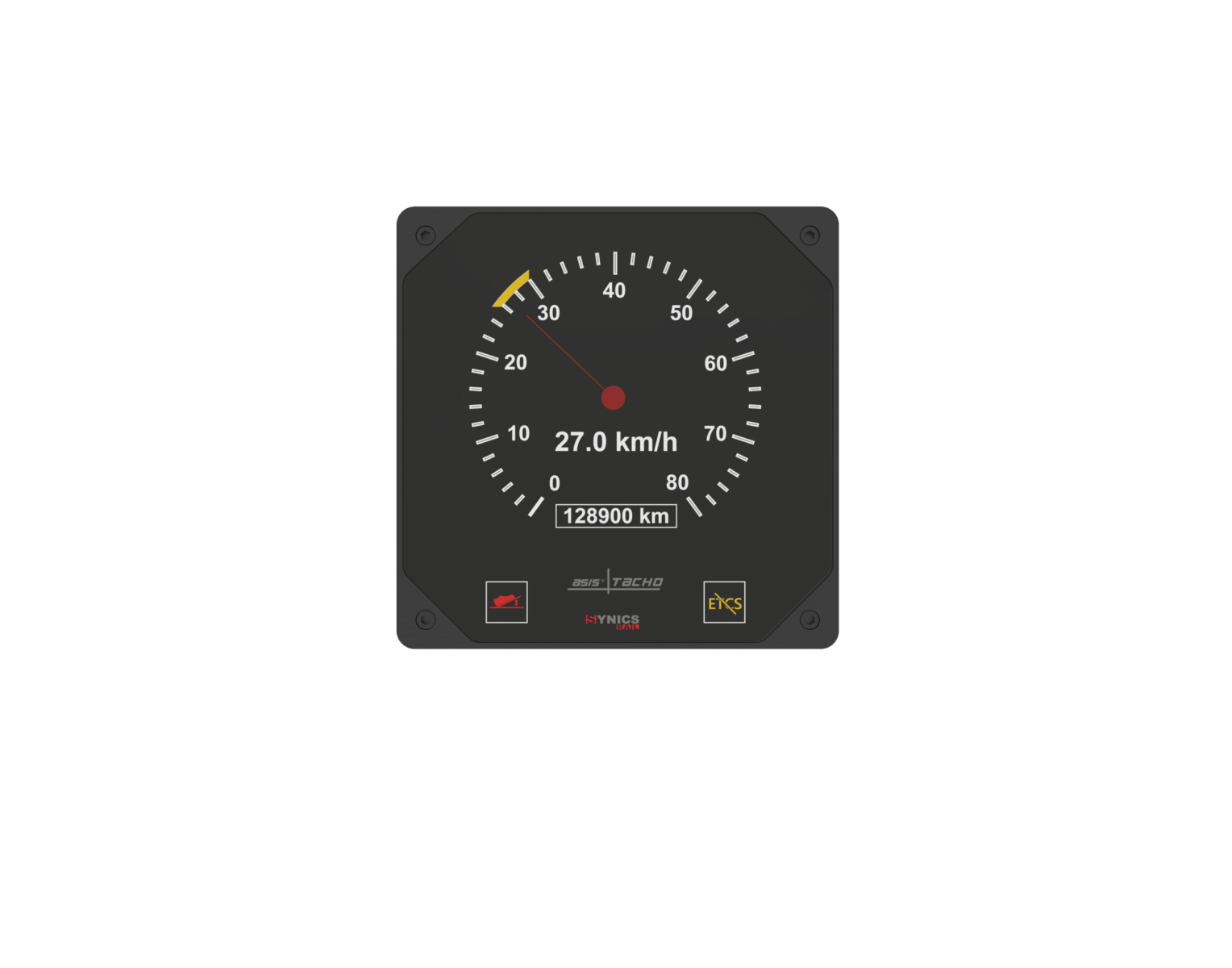

4-INCH SPEED DISPLAY
Display
Actual and target speed
Define pointer, scale, colours, digital values and additional information.
- 720 × 720 pixels
- Adjustable brightness
- Analogue and digital
INSERT STRIP
Symbols
Two flexible indicators
Replaceable insert strips carry customer-specific symbols with two configurable colours.
- Up to 16 × 16 mm
- Seven colour options
- Lamptest and dimming
04 Signal integration
Flexible inputs.
Consistent indication.
Speed and symbol information can reach asis®Tacho through analogue inputs, CAN or Ethernet.
- 0-10 V or 4-20 mA actual and target speed
- CANopen and sdxCAN
- TCP and TRDP via Ethernet
- USB and web-based configuration
Inputs
→Analogue
CAN
Ethernet (TRDP, TCP)
Displayasis®Tacho
→Outputs
Actual speed
Target speed
Symbols
05 System integration
Connected across the asis® family.
Combine speed indication with recording, positioning, vehicle control, symbols and analysis.
asis®JRU
Connected railway system component.
View product →
asis®JRU CPM
Connected railway system component.
View product →
asis®VS-100
Connected railway system component.
View product →
asis®GPS2.0
Connected railway system component.
View product →
asis®Picto
Connected railway system component.
View product →
asis®CHARTS X
Connected railway system component.
View product →06 Technical data
Compact, robust and configurable.
High-quality materials, protected front glass and shallow installation depth support demanding driver desks.
- Display
- 4 inch · 720 × 720 pixelsDimmable project-specific design
- Dimensions
- 144 × 144 × 38 mmOnly 4.9 mm above front plate
- Supply
- 24-110 VDC ±30%16.8-143 V operating range
- Power consumption
- 0.5 W typical · 5 W max.Inrush below 300 mA
- Analogue inputs
- 2 × 0-10 V or 4-20 mAActual and target speed
- Networks
- Ethernet · CANTCP · TRDP · CANopen · sdxCAN
- Digital output
- 110 VDC / 0.5 AGalvanically isolated
- Temperature
- -25 to +70 °CStorage -40 to +85 °C
- Humidity
- 10-90 %RHNon-condensing
- Protection
- IP65 front · IP21 rearIK07 front glass
- Altitude
- Up to 3000 mDuring operation
- Housing
- Black anodised aluminiumBlack printed glass front
07 Application focus
Designed for modern and retrofit driver desks.
08 Downloads
Technical documentation.
The current datasheet includes interfaces, electrical data, configuration and installation.
EN · PDFasis®Tacho DatasheetDownload ↓
MANUALSManuals are available on request.Contact us →
Your scale. Your symbols.
